Product Details

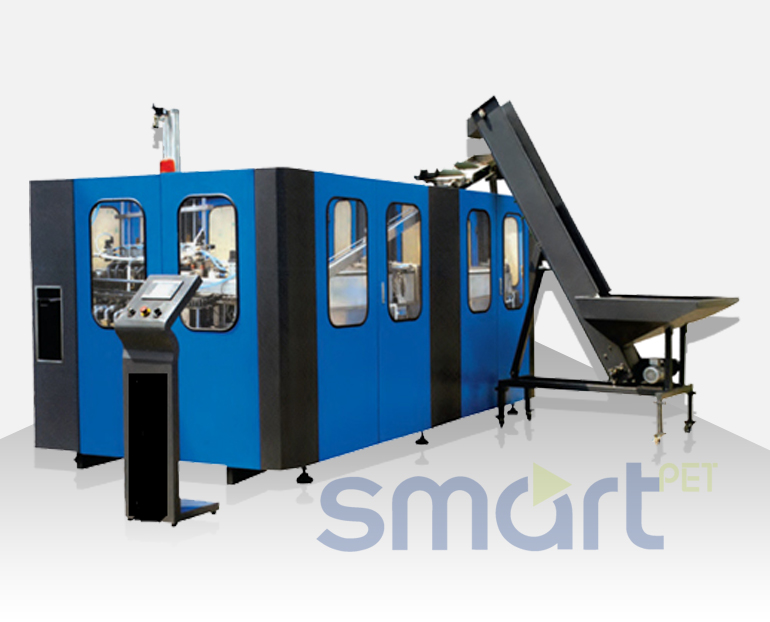

• FA4C-ABBAX manufactures PET bottles & jars, which are being used for Mineral Water, Edible Oil, Pesticides, Pharmaceuticals, Carbonated Soft Drinks, Liquor, Cosmetics and Confectioneries.
• Production Capacity 3500 to 3600 bottles / hour for 19mm - 30mm neck diameter size.
• Machine equipped with JANATIC pneumatic Cylinders, MERCURY operating valves, LUCI PARKER blowing section, BRRIT locking cylinder and SARIKA - Programmable Logic controller.

SPECIFICATION	UNIT	FA4C-ABBAX
Product Capacity	ml	60 to 2000
Neck Dia	mm	19 to 30
Max. Product Dia	mm	100
Max. Product Height	mm	340
Production Capacity (19gms-1000ml-28mm)	bottles/hr	3500-3600
Number of Neck Holders	nos	72
Cavity	no	4
Power Consumption	kW	52
Operating Pressure	Kg	8 to 10
Blowing Pressure	Kg	26 to 30
No. of Heater (2Kw each)	no	24
Clamping Stroke	mm	150
Clamping Force	ton	10
Max.Mould Thickness	mm	200
Min.Mould Thickness	mm	150
Cavity Centre Distance	mm	100
Air Requirement (HP/LP)	cfm	125/50
Dimention of Machine	mm	2550 X 2080 X 1750
Weight of Machine (Approx)	kgs	1850

“ In our endeavor to improve quality, product specifications and look may change without prior notice”
